Product Description

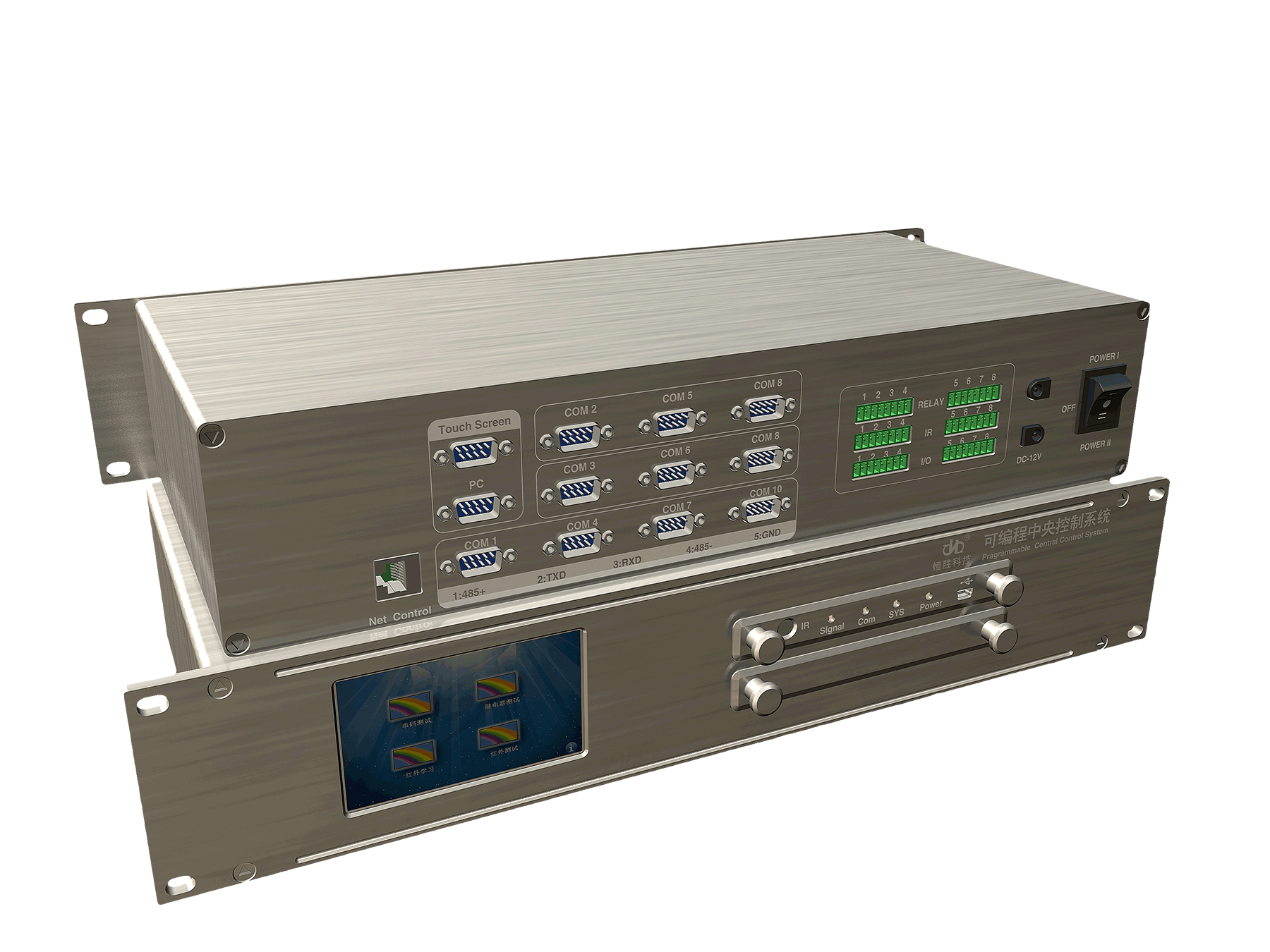

HS-390MX controller is a programmable multimedia central control system. It is a product specially developed and designed to meet the high-stability and high-reliability requirements of high-end multimedia conference systems. It has complete functions, stable performance, simple, fast and convenient programming, high-end The ideal choice of multimedia conference room, its excellent cost performance is especially suitable for large-scale use by industry customers.
Features
· 1 MINI USB programmable interfaces, convenient and quick to update the program;
· Built-in 4.3-inch programmable LCD touch screen on the front panel, the appearance is more user-friendly, beautiful and high-end;
· Supports up to 10 RS-485 control buses, and can expand control modules arbitrarily, such as multiple dimmers, multiple radio frequency wireless receivers, multiple power controllers, etc., and can support up to 2560 devices;
· 1 RJ45 network control port, support network control function, you can control the central control through a WIFI device and then through a wireless router, support WIFI platform mobile phones or tablets with Apple IOS, Android, Windows CE and other operating systems;
· The interface is separated from the control core board, and the control core board adopts a pull-out card design, which is easy to replace;
· External power adapter redundant power supply DC12V90W, international universal power supply (110V-240V), suitable for any region;
· Using programmable logic array circuit, faster running speed and more stable system;
· Comprehensive support for third-party equipment and control protocols, customers can set a variety of control protocols and codes by themselves;
· Support multi-code control, that is, one key to send multiple codes (IR infrared, RS-485 code, RS-232 code)
· Adopt the internationally popular SMT (SMT) production technology;
· High quality, mass production, high compatibility and stability, and high cost performance;
· Standard 19-inch rack installation, all-aluminum alloy 2U standard shell, international popular high-end product design style, beautiful appearance.
Specification
Parameter | Technical |
Processor | Using 32-bit Samsung ARM9 core processor, the processing speed can reach 400MHZ; |
RAM | 64MB RAM |
Memory | 128MB of large-capacity FLASH memory |
Programmable serial port | 10 independent programmable, support RS-232/422/485 control protocol |
Fixed serial port | 2 independent fixed RS-232 control interfaces, which can be connected to touch screen, local computer and other control interfaces |
Weak current relay control interface | 8 independent programmable |
DI input detection port | 8 independent programmable |
Infrared emission interface | 8 independent programmable |
Network control port | 1 network control port, which can realize network control function |
USB port | 1 way MINI USB programmable interface |
Touch screen | Built-in 4.3 inch 65K color programmable LCD touch screen |
Case material | All aluminum alloy |
Power supply | External power adapter, using DC12V/4A power adapter |
Operating temperature | -5℃～50℃ |
Working humidity | 5～90% no condensation |
Size | 19-inch rack installation, 2U standard chassis, 483 × 223 × 89 mm(L*W*H) |
