Product Description

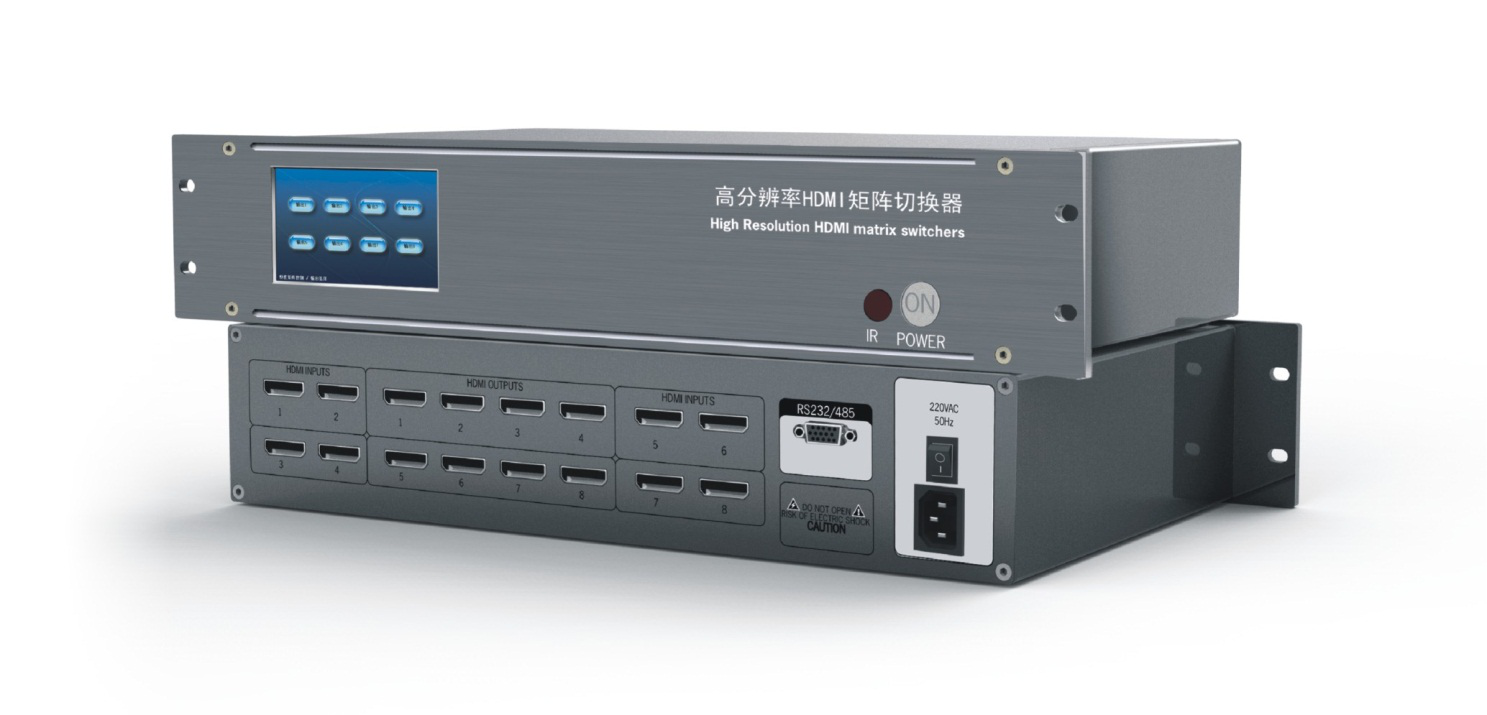

HS-HDMI0808/04/02 is an HDMI matrix with 8 inputs and 8/4 outputs. This matrix supports HDMI 1.3a, HDCP 1.3, and DVI 1.0 protocols. All HDTV resolutions that support 12-bit color depth include 1080p/60, and PC resolutions up to 1920*1200. Supports automatic equalization for long-line inputs up to 35 meters, compensation for long-distance HDMI cables, and reduces the number of additional input signal processing equipment required. This matrix can excellently transmit HDMI video and multi-channel digital audio signals to the display device through the HDMI cable.
Features
·Support 8 HDMI inputs, 8/4 HDMI outputs and cross-switching of embedded multi-channel digital audio signals:
·Compatible with all HDTV resolutions including 1080p/60 and PC resolutions up to 1920x1200;
·Long-line input automatic equalization-to ensure that each input can be independently and automatically compensated for signal loss caused by long-distance transmission or the use of low-quality cables;
·Support HDMI 1.3a, HDCP 1.3, and DVI1.0 protocols. Support high color depth, and up to 2.25 Gbps rate;
·HDCP compatibility-to ensure that the media with content protection can be displayed normally in conjunction with other HDCP compatible devices;
·With power-down memory function, and power-off site protection；
·The front panel adopts Hengsheng exclusive patent technology-- 4.3 inch full color programmable LCD touch panel , it can make key operation；
·With 1way RS-232 communication interface；
·With 1way RS-485 communication interface；
·With 1way IR remote interface；
·Built-in international universal power supply, power supply range supports AC 100V--240V；
·Standard 19-inch rack mount: 2U high-grade aluminum chassis.
Typical application
It is mainly used in monitoring engineering, radio and television engineering, multimedia conference halls, large-screen display engineering, television teaching, command and control centers and other places.
Specifications
Parameters | Specification | |
Video | Protocol | Support HDCP1.3 protocol, support HDMI1.3 protocol, compatible with DVI l.0 protocol |
Gain | OdB | |
Pixel Bandwidth | 165MHz,All numbers | |
Interface bandwidth | 2.25Gbps,All numbers | |
Max support resolution | Normal-PC: 1600×1200@60_24bit, HDPC:1920×1200P@ 60_24bit,HDTV: 1920×1080P@60_36bit | |
Bit clock jitter | <0.15 Tbit | |
Rise time | <0.3Tbit(20%--80%) | |
Fall time | <0.3Tbit(20%--80%) | |
Max transmission delay | 5nS(±1nS) | |
Switch speed | 200ns（the longest time） | |
Signal type | HDMI-A all-digital T.M.D.S. signal in the HDMI 1.3 specification | |
Video Input | Interface | HDMI-A female interface 8 channels |
Signal strength | T.M.D.S. +/-0.4Vpp | |
Min/Max electrical level | T.M.D.S. 2.9V/3.3V | |
Impedance | 75Ω | |
Input EDID | EDID On-site rewritable | |
Max DC offset error | 15mV | |
Recommended max input distance | Less than 20 meters, at 1920×1200@60 (recommended to use certified HDMI dedicated cable village, such as Molex TM cable) | |
Video Output | Interface | HDMI-A female interface 8 channels/4 channels |
Min/Max electrical level | T.M.D.S. 2.9V/3.3V | |
Impedance | 50Ω | |
Recommended max output distance | Less than 10 meters, at 1920×1200@60 (recommended to use certified HDMI dedicated cable village, such as Molex TM cable) | |
RS-232 Control Interface | Serial control interface | RS-232,DB9 type interface |
Baud rate and protocol | 9600,data bit:8,stop bit:1,No parity | |
Structure of serial control interface | 2= TX,3= RX, 5=GND | |
RS-485 Control Interface | Serial control interface | RS-485,DB9 type interface |
Baud rate and protocol | 9600,data bit:8,stop bit:1,No parity | |
Structure of serial control interface | 1= DATA+,4= DATA- | |
LCD touch screen | Working method | programmable, four-wire resistive touch screen |
Size | 4.3 inch | |
Color | 65536 colors | |
Infrared | Channel | 1way infrared（IR）receiver |
Working method | 38KHZ carrier communication mode, remote control is optional | |
Others | Power supply | 100VAC - 240VAC,50/60Hz,International adaptive power supply |
Temperature | -20℃ - +70℃ | |
Humidity | 10% - 90% | |
Weight | ＜4kg | |
MTBF | 50,000 hours | |
