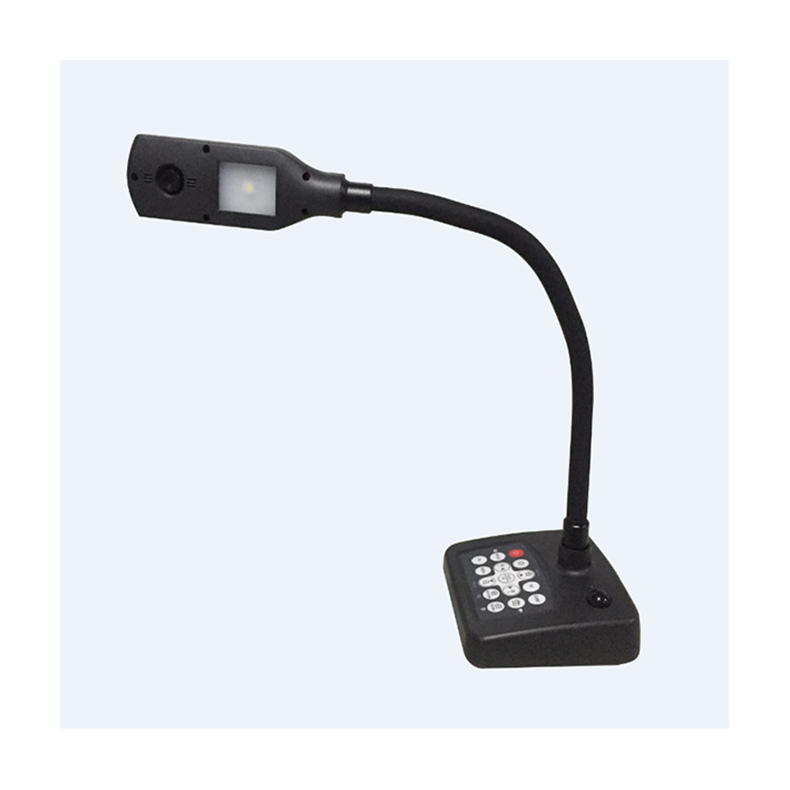

Hengsheng HS6800 Full HD Document Camera

  Document Camera     |      2021-06-23

Features

?HS-6800 with 8.0mega ,

?A3, A4 Paper

?Line Resolution≥1000

?Gooseneck Design, Shooting any angle

?VGA/HDMI/USB Interface

?Built-in MIC

?1080P@30fps H.264 recording

?One key digital interconnection, fast saving by SD Card

 Technical Parameters

Model

HS6800

Total Pixel

8.0 mega (3264x2448)

Frame Rate

30fps(Max)

Zoom

2.5x no-loss/16x digital/10x mechanical

Focus

Auto/ Manual

Shooting Area

A3 (297*420mm)

VGA Input Resolution

XGA,SXGA,720P,1080P

Picture Output

8.0 mega

Recording Output

1080p@30fps(max)

USB Output

3840x2160@8fps/1920x1080@30fps

Picture Format

JPEG

Record Format

MP4,Video H264,Audio AAC

Image Adjustment

Brightness,Red ,Blue,etc

Image Function

Negative,positive,freeze;minor, noise reduction,black/color,text increase,etc

OSD

Yes

Assistant Light

Yes( 1w LED)

Standby VGA-in-use

Yes

Wake up on Standby

Yes

One Key Switch

Yes

One key Digital

Interconnection

Support SD Card fast exchange between Storage medium and U-disc

Hardware Program Upgrade

Support

Boot screen replacement

Support

VGA

Input *1, Output *1

HDMI

Output*1

USB2.0

*1

SD Card

Yes

MIC

Yes

Button

Yes(Waterproof membrane)

Infrared Control

Yes

Security Lock

Yes

Power

DC 5V

Bottom Size

145*130mm

Net Weight

1.6(kg)
