Product details
1.You can add, subtract, mute the output sound,with sound switching and volume control function,
2. HDMI：3 in 2 out，VGA：3 in 2 out，Audio: 2 in 2 out stereo，USB3.0 2 in and out and compatible
with 2.0，RS232：1way.

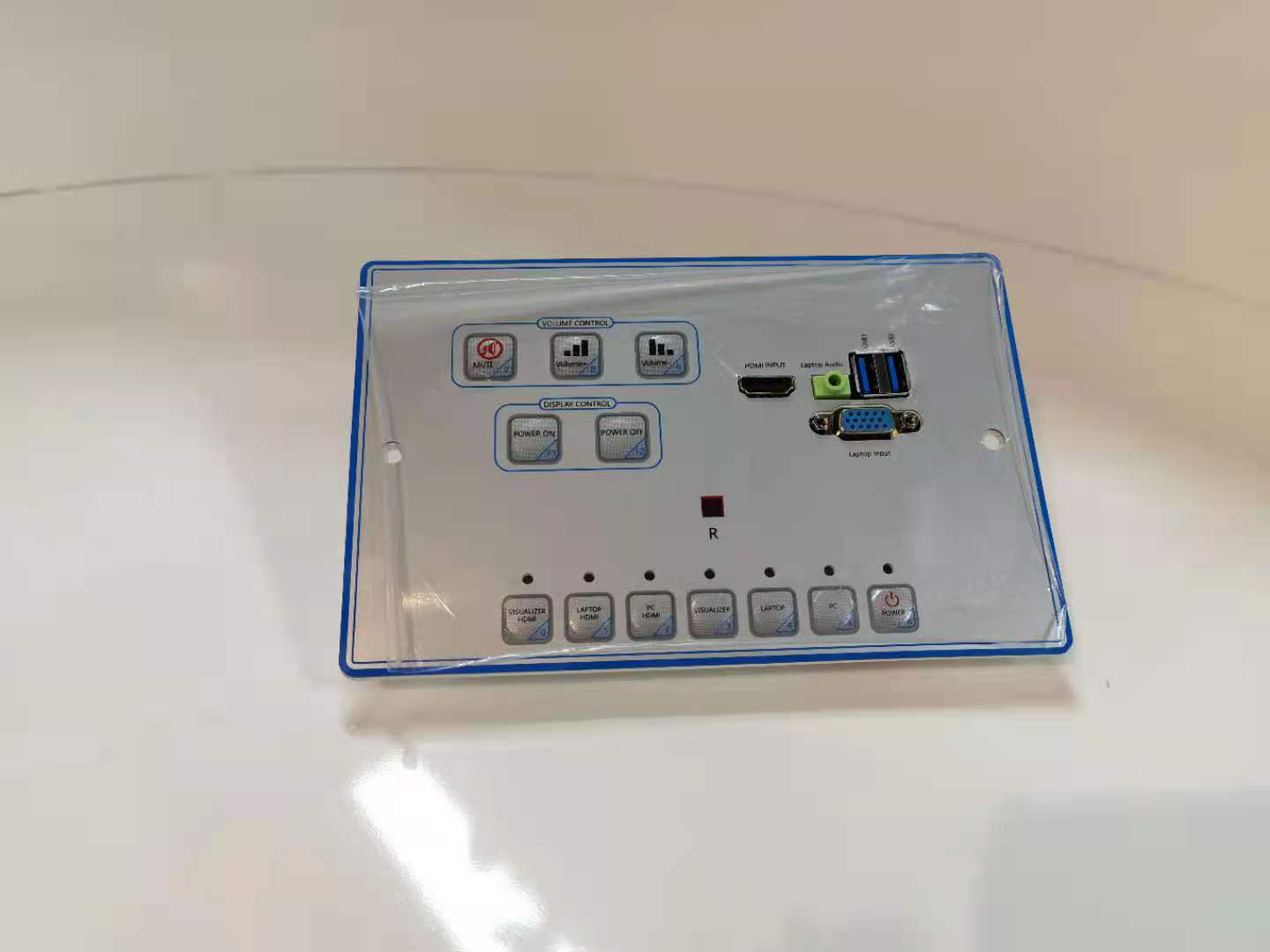

3.The front panel adopts the whole dust-proof and waterproof control film button.
4.The central control built-in VGA video high bandwidth switch distribution chip.
5.The central control built-in HDMI video high bandwidth switch distribution chip.
6. Ultra thin ,4k central controller
Product Model | HS-350D | |
Signal Parts | VGA signal（input × output） | 3×2 |
HDMI（input × output） | 3×2 | |
Stereo audio（input × output） | 2×2 | |
Power Supply | Power supply | DC5V |
Maximum power consumption | <10W | |
Machine part | Panel size（L×W×D）mm | approximately：187×119×2.5 |
Body size（L×W×D）mm | approximately：136×96×27 | |
Recommended opening hole size（L×W）mm | 140×100 | |
Accessory | Power adapter | |
Panel interface | USB interface | 2 way USB3.0 |
VGA interface | 1way | |
HDMI interface | 1way | |
Portable audio input | 1way | |
Portable VGA input | 1way | |
Specification
